manufacturer:
Siemens
mpn:
366-02071
Product Description

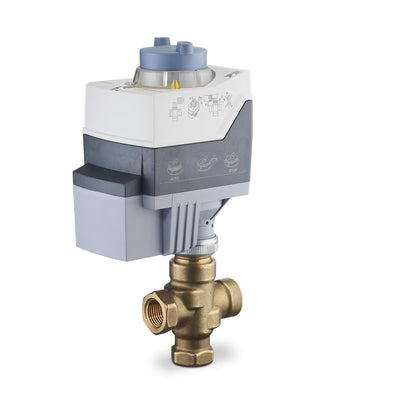

Siemens - 366-02071 MT Series 3W Valve assy ANSI 250 Mix Linear 1" FxF 10Cv 24V float SR
This Powermite 599 MT Series Valve Assembly features a 24V, spring return, electro-mechanical actuator with floating control. The 1 in. line size, 3-way mixing assembly has a 10 Cv flow rate, brass trim, and a linear flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.
Additional Information
Valve TypeThree-way
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionNPT
Connecting threadDirect-coupled universal bonnet
Material, valve bodyBrass
Material, inside setBody Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rateClass IV (0.01% of Cv)
Permissible operating pressureMax. differential pressure for modulating service: 25 psi (173 kPa)
Medium temperature35…250 ºF
Stroke7/32 in
Valve Actuator TypeElectronic
Supply Voltage24 VAC
Positioning time30 s
Power consumption3.4 VA
