manufacturer:
Siemens
mpn:
378-07318
Product Description

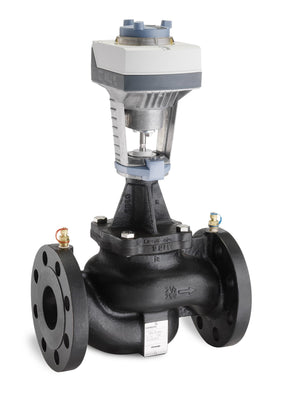

Siemens - 378-07318 PICV, 5 inch, ANSI 125, 595 GPM max. flow, with SAV Actuator, 0-10V, NSRPressure Independent Control Valve, 5 inch, ANSI 125, 595 GPM maximum flow (field adjustable), with 24 Vac Electronic SAX Non-spring Return Actuator, 0-10V or 4-20mA
Pressure Independent Control Valve, 5 inch, ANSI 125, 595 GPM maximum flow (field adjustable), with 24 Vac Electronic SAV Non-spring Return Actuator, 0-10V or 4-20mA
Additional Information
Valve TypeTwo-way
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFlanged
Material, valve bodyCast Iron
Material, inside setStem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
MediumWater , Water with anti-freeze
Max GPM595 gpm
Min GPM105 gpm
Preset GPM595 gpm
Leakage rateClass IV (0.01% of Cv)
Medium temperature34…250 ºF
Stroke1-1/2 in., 40 mm
Valve Actuator TypeElectronic
Actuation StyleLinear
Normally Open/Normally ClosedNormally Open
Supply Voltage24 VAC/DC
Positioning time120 s
Power consumption9.5 VA
Positioning signal0...10 V
