category:
Controls Sensors
manufacturer:
Siemens
mpn:
536-767-60
Product Description

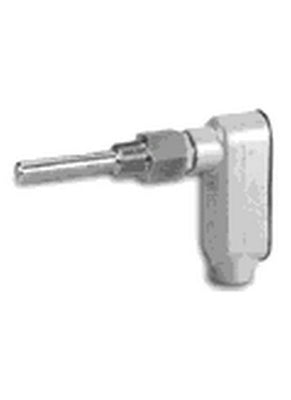

Siemens - 536-767-60 Liquid Immersion Temperature Sensor, 100 Ohm Platinum RTD, 6-Inch ProbeLiquid immersion temperature sensor, 6-inches (15.2 cm) long. Temerature range from 30 to 250 degrees Fahrenheit and a 4 to 20 mA output.
Additional Information
Measuring range, temperature-1…121 °C
Sensing element100 ohm Platinum RTD
Operating voltage18 to 36Vdc or 24Vac ± 20 %
Analog outputs4 to 20 mA
Measuring range30 to 250 °F
Measurement accuracy+/-0.54°F @ 32 °F
Sensor6 in. insertion depth with 300 series stainless steel well
Material, housingNot for use with potable water
Sensing elementPt100
