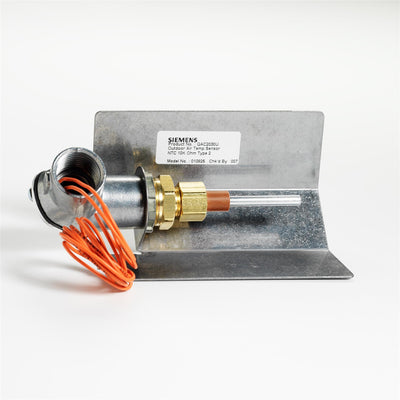

Siemens 536-768 OUTSIDE AIR TEMPERATURE SENSOR, THROUGH-THE-WALL, 4 TO 20 MA

Siemens 536-768 OUTSIDE AIR TEMPERATURE SENSOR, THROUGH-THE-WALL, 4 TO 20 MA

Dropship

SKU SKU:kpi058-536-768

Regular price $115.72 USD
Regular price Sale price $115.72 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Controls Sensors
manufacturer: Siemens
mpn: 536-768

Outside Air Temperature Sensor, Through-the-wall, 4 to 20 mA

This outdoor air sensor provides input for accurate loop-powered temperature sensing for controllers. It has a temperature range of -58 to 122 degrees Fahrenheit and a mid-range accuracy of +/- 0.6 degrees Fahrenheit. This sensor allows through-the-wall mounting for outside air temperature measurements and provides a 4 to 20 mA control signal; uses metal housing.

Additional Information

Measuring range, temperature-50…50 °C
Sensing element100 ohm Platinum RTD
Operating voltage18 to 36Vdc or 24Vac ± 20 %
Analog outputs4 to 20 mA
Measuring range-58 to 122 °F
Measurement accuracy+/-0.54°F @ 32 °F
Material, housingMetal
Sensing elementPt100
