category:
Controls Sensors
manufacturer:
Siemens
mpn:
536-811
Product Description

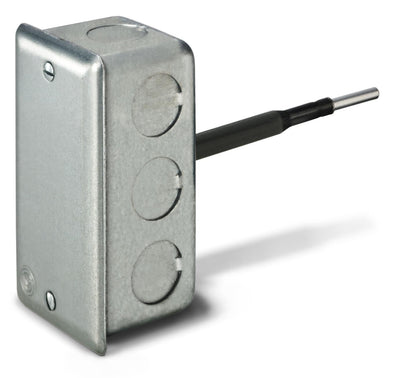

Siemens - 536-811 Duct Point Temp Sensor, 4" rigid, 100,000 Ohm Ref Resistance 77 Deg F
This Rigid Duct Point Temperature Sensor measures 4" and provides input for cost-effective, accurate temperature sensing to the Modular Building Controller (MBC), Remote Building Controller (RBC), Stand-alone Control Unit (SCU), MPU and Terminal Equipment Controllers via an 18 AWG twisted, shielded cable pair. The sensor resistance varies proportionally to the temperature being measured and has an 100,000 Ohm reference resistance at 77 Degrees Fahrenheit.
Additional Information
Measuring range, temperature-40…116 °C
Sensing element100K ohm Thermistor
Analog outputs100k Ohm Thermistor
Measuring range-40 to 180 °F
Measurement accuracy+/-0.50°F @ 77 °F
Sensor4 in. Rigid point type probe
Sensing elementNTC 100k
Probe length4 in
