manufacturer:
Siemens
mpn:
599-00231
Product Description

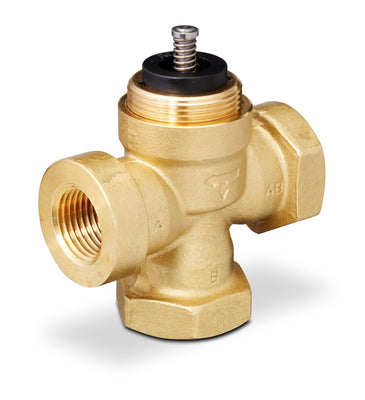

Siemens - 599-00231 599 Series Zone Valve, 1/2", 3W, 2.5Cv, linear, ANSI 125, 1/10" stroke, NPT
599 Series Zone Valve, 1/2-inch, three-way, globe body style, 2.5 Cv, diverting or mixing (limited application), controlled medium is water or glycol solutions to 50%, linear characteristic, ANSI Class 125, 1/10-inch (2.5 mm) stroke, 44 psi (303 kPa) close-off pressure, NPT end connections, and direct-coupled universal bonnet for actuator connection.
Additional Information
Valve Size0.5 in
Flow Coefficient, Cv2.5
Valve Body StyleStroke-Globe
Port Configuration3-Way Diverting
End ConnectionNPT
Connecting threadNPT
Material, valve bodyBrass
Trim MaterialBrass
Material, inside setTrim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
Flow CharacteristicLinear
MediumWater , Water with anti-freeze
DN15
Pressure ClassANSI 125
Leakage rateANSI Class III
Leakage rate, classANSI Class III
Medium temperature34…230 ºF
Stroke2.5 mm
Stroke, mm2.5 mm
Dimensions (W x H x D)2.76 x 3.11 x 1.54 in
