manufacturer:
Siemens
mpn:
599-01112
Product Description

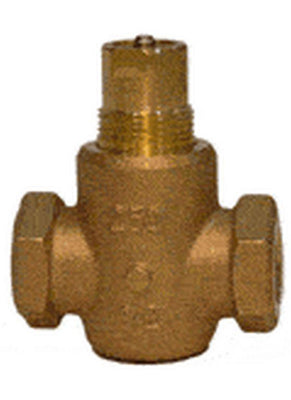

Siemens - 599-01112 MZ Series 3/4" 2-Way Valve 6.3Cv, NC, Mod Eq Percent, Brass Trim, FxF, ANSI 250Powermite MZ Series, 3/4" 2-Way, 6.3 Cv, NC, Modified Equal Percentage, F×F, Bronze Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range, No tools required fo
Powermite MZ Series, 3/4" 2-Way, 6.3 Cv, NC, Modified Equal Percentage, F×F, Brass Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range, No tools required fo
Additional Information
Valve Size0.75 in
Flow Coefficient, Cv6.3
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFxF
Trim MaterialBrass
Flow CharacteristicModified Equal-percentage
MediumWater , Water with anti-freeze
DN20
Pressure ClassANSI 250
Medium temperature35…250 ºF
Dimensions (W x H x D)3.23 x 3.15 x 1.57 in
