manufacturer:
Siemens
mpn:
599-01131
Product Description

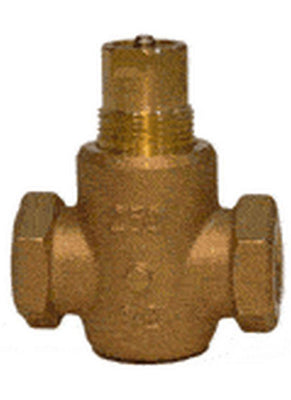

Siemens - 599-01131 MZ Series 1" 2-Way Valve 10 Cv, NO, Mod Eq Percent, Brass Trim, FxF ANSI 250Powermite MZ Series, 1" 2-Way, 10 Cv, NO, Modified Equal Percentage, F×F, Bronze Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range, No tools required for i
Powermite MZ Series, 1" 2-Way, 10 Cv, NO, Modified Equal Percentage, F×F, Brass Body, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, 10 to 15 psi spring range, No tools required for i
Additional Information
Valve Size1 in
Flow Coefficient, Cv10
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFxF
Trim MaterialBrass
Flow CharacteristicModified Equal-percentage
MediumWater , Water with anti-freeze
DN25
Pressure ClassANSI 250
Medium temperature35…250 ºF
Dimensions (W x H x D)3.86 x 3.54 x 2.05 in
