manufacturer:
Siemens
mpn:
599-03131
Product Description

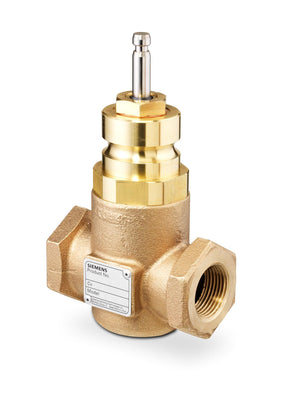

Siemens - 599-03131 Flowrite, 1" 2-way Valve, NC, 10 Cv, Equal Percentage, SS Trim, FxF, ANSI 250Flowrite, 1" 2-Way Valve, 10 Cv, Equal Percentage, NC, F×F, SS Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators. Globe-style control valve has four connection options and a direct-coupled bonnet.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFxF
Connecting threadNPT, direct-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumSaturated steam , Water , Water with anti-freeze , Steam
DN25
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Dimensions (W x H x D)3.94 x 5.51 x 1.57 in
