manufacturer:
Siemens
mpn:
599-03170
Product Description

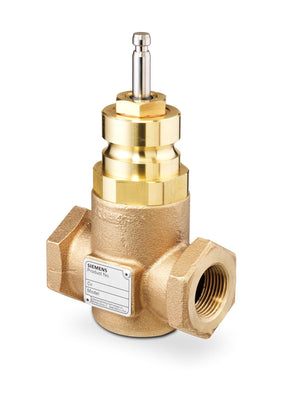

Siemens - 599-03170 Flowrite 2" 2-Way Valve, NO, 40 Cv, Equal Percentage, Brass Trim, FxF, ANSI 250
Flowrite, 2" 2-Way Valve, 40 Cv, Equal Percentage, NO, F×F, Brass Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFxF
Connecting threadNPT, direct-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumSaturated steam , Water , Water with anti-freeze , Steam
DN50
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Dimensions (W x H x D)6.22 x 6.26 x 2.83 in
