manufacturer:
Siemens
mpn:
599-03202
Product Description

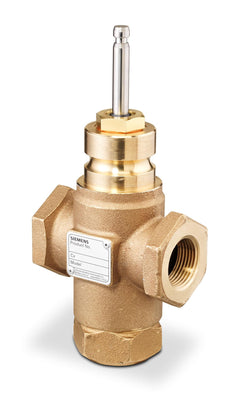

Siemens - 599-03202 Flowrite 3-Way Valve 3/4"(20mm) line size, 6.3 Cv, Brass Trim, FxF, ANSI 250The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, F×F connections, 3/4" line size, 6.3 Cv flow rate and is ANSI Class 250.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFxF
Connecting threadNPT, direct-coupled universal bonnet
Material, valve bodyUNS CA 844 bronze
Material, inside setBody Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
MediumWater , Water with anti-freeze
DN20
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Dimensions (W x H x D)3.35 x 6.02 x 1.26 in
