manufacturer:
Siemens
mpn:
599-03611
Product Description

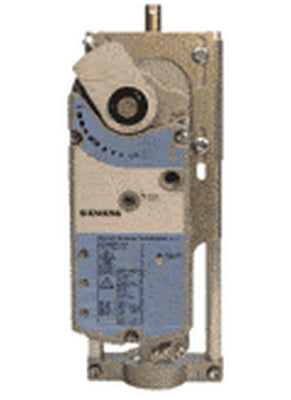

Siemens - 599-03611 Rack and Pinion Valve Actuator, Spring Return, 24 Vac, Two-Position Control
This Flowrite Rack and Pinion Valve Actuator is used with 1/2 to 2-inch Flowrite 2-way and 3-way valves with a 3/4-inch stroke. This electronic rack and pinion actuator has an operating voltage of 24 Vac, two-positiion control, and bi-directional fail-safe spring return. Other features of this rack and pinion include all metal housing, and brushless DC motor technology with stall protection.
Additional Information
Actuator TypeElectronic
Fail SafeYes
Spring return functionSpring return functionality
Control Signal0...10 Vdc
Positioning signal2-position
Power consumption8VA running, 3 VA holding
Mounting positionNEMA 2 in vertical to horizontal 90 degrees
Ambient temperature, operation-25 to 130°F, -32 to 55 °C
Ambient humidity, operation95% RH
Operating voltage24 Vac
Supply Voltage24 VAC
Stroke3/4 in., 20 mm
