manufacturer:
Siemens
mpn:
599-04316-35
Product Description

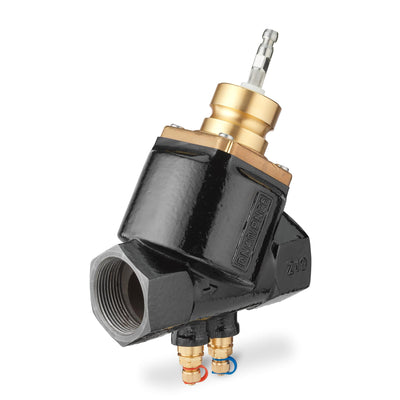

Siemens - 599-04316-35 PICV, 2 inch, Normally Open, 35 GPM max. flow presetPressure Independent Control Valve, 2 inch, Normally Open, preset to 35 GPM maximum flow (field adjustable)
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionNPT
Connecting threadInternal NPT thread
Material, valve bodyDuctile Iron
Material, inside setPlug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
MediumWater , Water with anti-freeze
Max GPM50 gpm
DN50
Min GPM10 gpm
Preset GPM35 gpm
Leakage rateANSI Class IV (0.01%) @ 100 psi
Rangeability≥ 100:1
Medium temperature34…248 ºF
Stroke15 mm
Dimensions (W x H x D)3.7 x 8.78 x 5.47 in
