manufacturer:
Siemens
mpn:
599-05951
Product Description

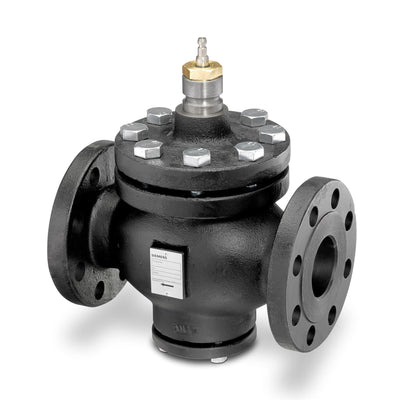

Siemens - 599-05951 Flowrite 3" Flanged, 2-Way Valve, NC, 100 Cv, Eq Percent, Bronze Trim, ANSI 250Flowrite, 3" 2-Way Valve, Flanged, Iron Body, 100 Cv, Equal Percentage NC, Bronze Trim, ANSI Class 250; Designed to work with pneumatic or electronic actuators. For normal duty applications.
Flowrite, 3" 2-Way Valve, Flanged, Iron Body, 100 Cv, Equal Percentage NC, Brass Trim, ANSI Class 250; Designed to work with pneumatic or electronic actuators. For normal duty applications.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFlanged
Connecting threadValve flange face-to-face dimensions meet ISA 75.03 standards; direct-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Bronze , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
MediumSaturated steam , Water , Water with anti-freeze , Steam
DN80
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Dimensions (W x H x D)12.52 x 15.79 x 8.27 in
