manufacturer:
Siemens
mpn:
599-06054
Product Description

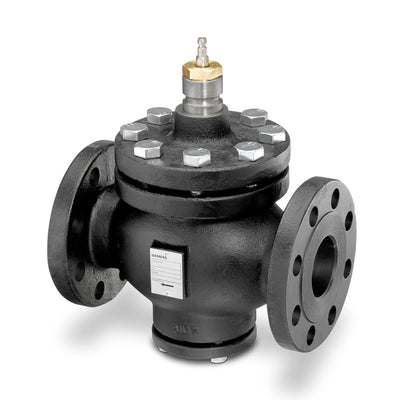

Siemens - 599-06054 Flowrite 6" Flanged, 2W Valve, NC, 400 Cv, Linear, SS, Hi Temp Pack, ANSI 125
Flowrite, 6" 2-Way Valve, Flanged, Iron Body, 400 Cv, Linear NC, SS Trim, High Temp Packing, ANSI Class 125; Designed to work with pneumatic or electronic actuators. For normal duty applications.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFlanged
Connecting threadValve flange face-to-face dimensions meet ISA 75.03 standards; direct-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
MediumSaturated steam , Water , Water with anti-freeze , Steam
DN150
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…337 ºF
Stroke1-1/2 in., 40 mm
Dimensions (W x H x D)17.76 x 20.43 x 10.98 in
