manufacturer:
Siemens
mpn:
599-06170
Product Description

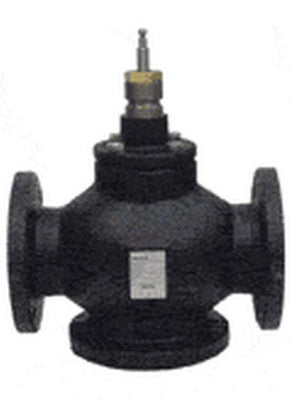

Siemens - 599-06170 Flowrite 2-1/2" Flanged, 3W Valve, 63Cv, Bronze Trim, ANSI 250The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, bronze trim, flanged connections, 2-1/2" line size, 63 Cv flow rate and is ANSI Class 250.
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, flanged connections, 2-1/2" line size, 63 Cv flow rate and is ANSI Class 250.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFlanged
Connecting threadValve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
DN65
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…250 ºF
Stroke3/4 in., 20 mm
Dimensions (W x H x D)11.5 x 12.8 x 7.52 in
