manufacturer:
Siemens
mpn:
599-06177
Product Description

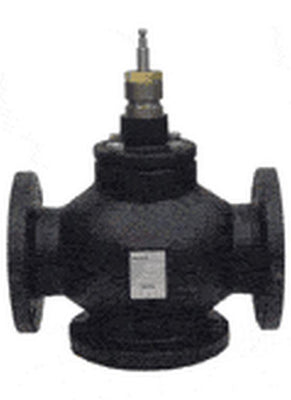

Siemens - 599-06177 Flowrite 4" Flanged, 3W Valve, 160Cv, Stainless Steel Trim, ANSI 250The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 4" line size, 160 Cv flow rate and is ANSI Class 250.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration3-Way Mixing
End ConnectionFlanged
Connecting threadValve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
MediumWater , Water with anti-freeze
DN100
Leakage rateClass IV (0.01% of Cv)
Rangeability100:1
Medium temperature20…250 ºF
Stroke1-1/2 in., 40 mm
Dimensions (W x H x D)14.49 x 15.91 x 10 in
