manufacturer:
Siemens
mpn:
599-06610
Product Description

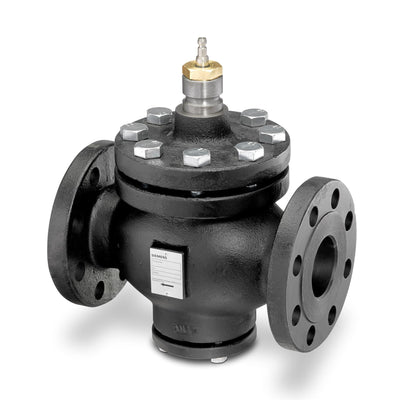

Siemens - 599-06610 Flowrite two-way 2 1/2 inch high close-off valve. ANSI 125, NO, SS trim.Flowrite 599 Series High Close-off 2-way 2-1/2 inch valve flanged iron body ANSI 125 , NO, Equal Percentage flow; Stainless steel trim.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFlanged
Connecting threadUniversal bonnet for direct-coupled actuators
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
MediumWater , Water with anti-freeze
DN65
Leakage rateANSI Leakage Class IV
Leakage rate, classANSI Leakage Class IV
Rangeability100:1
Medium temperature20…250 ºF
Stroke20 mm, 0.75 " mm
Stroke, mm20 mm
Dimensions (W x H x D)10.87 x 14.45 x 7.01 in
