manufacturer:
Siemens
mpn:
599-06622
Product Description

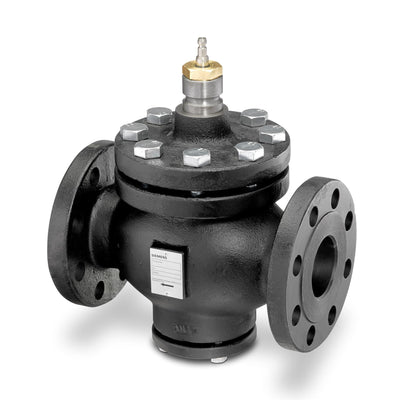

Siemens - 599-06622 Flowrite two-way 4- inch high close-off valve. ANSI 250, NO, SS trim.
Flowrite 599 Series High Close-off 2-way valve 4-inch valve, flanged iron body ANSI 250 , NO, Equal Percentage flow; Stainless steel trim.
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFlanged
Connecting threadUniversal bonnet for direct-coupled actuators
Material, valve bodyCast iron ASTM A126 Class B
Material, inside setBody Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
MediumWater , Water with anti-freeze
DN100
Leakage rateANSI Leakage Class IV
Leakage rate, classANSI Leakage Class IV
Rangeability100:1
Medium temperature20…250 ºF
Stroke40 mm, 1.5 " mm
Stroke, mm40 mm
Dimensions (W x H x D)14.49 x 16.97 x 10 in
