manufacturer:
Siemens
mpn:
599-07318
Product Description

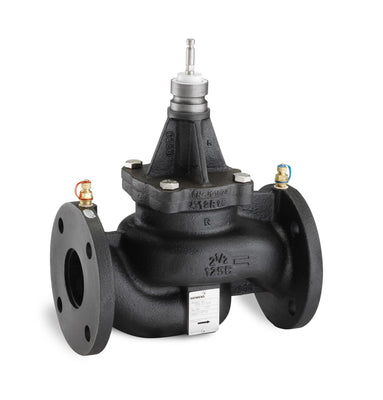

Siemens - 599-07318 PICV, 5 inch, ANSI 125, 595 GPM max. flowPressure Independent Control Valve, 5 inch, ANSI 125, 595 GPM maximum flow (field adjustable as low as 105 GPM)
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFlanged
Material, valve bodyCast Iron
Material, inside setStem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
MediumWater , Water with anti-freeze
Max GPM595 gpm
DN125
Min GPM105 gpm
Preset GPM595 gpm
Leakage rateClass IV (0.01% of Cv)
Medium temperature34…250 ºF
Stroke1-1/2 in., 40 mm
Dimensions (W x H x D)15.75 x 20.93 x 10 in
