manufacturer:
Siemens
mpn:
599-07319
Product Description

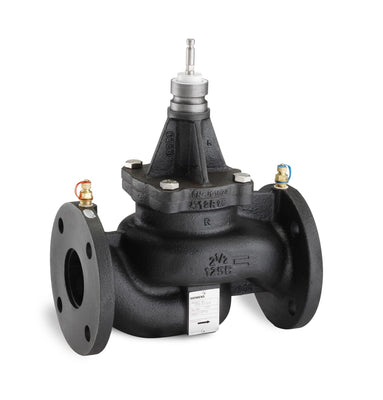

Siemens - 599-07319 PICV, 6 inch, ANSI 125, 860 GPM max. flowPressure Independent Control Valve, 6 inch, ANSI 125, 860 GPM maximum flow (field adjustable as low as 140 GPM)
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally closed
End ConnectionFlanged
Material, valve bodyCast Iron
Material, inside setStem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
MediumWater , Water with anti-freeze
Max GPM860 gpm
DN150
Min GPM140 gpm
Preset GPM860 gpm
Leakage rateClass IV (0.01% of Cv)
Medium temperature34…250 ºF
Stroke1-1/2 in., 40 mm
Dimensions (W x H x D)17.76 x 23.63 x 11.02 in
