manufacturer:
Siemens
mpn:
599-07324
Product Description

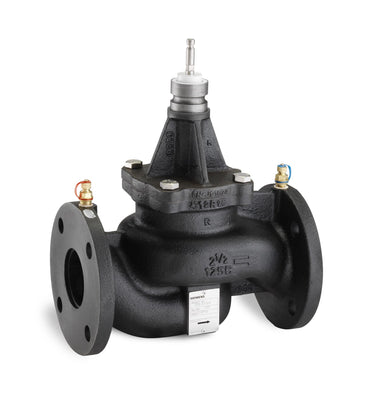

Siemens - 599-07324 PICV, 6 inch, ANSI 250 650 GPM max. flowPressure Independent Control Valve, 6 inch, ANSI 250, 650 GPM maximum flow (field adjustable as low as 115 GPM)
Additional Information
Valve Body StyleStroke-Globe
Port Configuration2-Way Normally open
End ConnectionFlanged
Material, valve bodyCast Iron
Material, inside setStem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
MediumWater , Water with anti-freeze
Max GPM650 gpm
DN150
Min GPM115 gpm
Preset GPM650 gpm
Leakage rateClass IV (0.01% of Cv)
Medium temperature34…250 ºF
Stroke1-1/2 in., 40 mm
Dimensions (W x H x D)18.62 x 23.82 x 12.5 in
