manufacturer:
Siemens
mpn:
599-10313S
Product Description

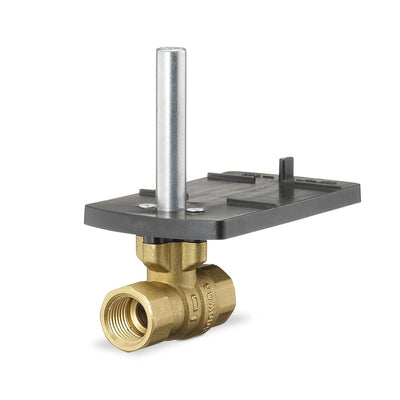

Siemens - 599-10313S 2-way 1", 16 Cv ball valve, stainless steel ball stem, 200psi close-off, NPT
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 16 Cv, equal percentage flow characteristic, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.
Additional Information
Port Configuration2-Way Normally open
End ConnectionNPT
Material, valve bodyBrass
MediumWater , Water with anti-freeze
DN25
Medium temperature35…250 ºF
Dimensions (W x H x D)6 x 8.31 x 5.38 in
