manufacturer:
Siemens
mpn:
599-10322
Product Description

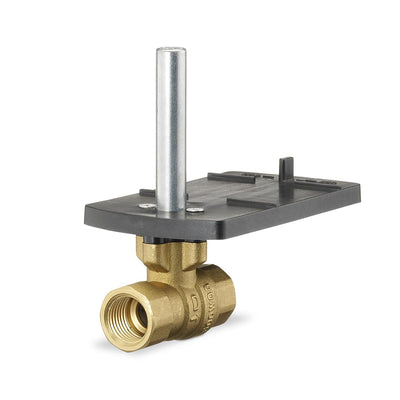

Siemens - 599-10322 2W 1-1/2", 25 Cv ball valve, chrome-plated brass ball and brass stem
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 25 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.
Additional Information
Port Configuration2-Way Normally closed
End ConnectionNPT
Material, valve bodyBrass
MediumWater , Water with anti-freeze
DN40
Leakage rate, classANSI Class IV
Medium temperature35…250 ºF
Dimensions (W x H x D)6 x 8.81 x 5.38 in
