manufacturer:
Siemens
mpn:
599-10600-0.5-0.5
Product Description

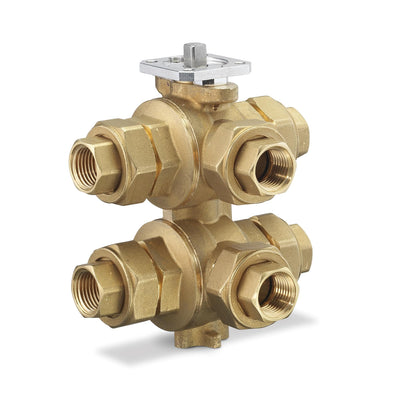

Siemens - 599-10600-0.5-0.5 6W ball valve 1/2", A=0.5Cv, B=0.5Cv, 58psi close-off, female NPT
This 1/2-inch 599 Series 6-way ball valve is used to control hot and chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. Source A = 0.5 Cv and Source B = 0.5 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.
Additional Information
Valve Body StyleRotary-Ball
Port Configuration6-Way Changeover
End ConnectionNPT union, female
Connecting thread1/2 inch NPT
Material, valve bodyBrass
Material, inside setBall: Chrome-plated brass , Ball Seals: PTFE , Stem: Stainless Steel , Stem Seals: EPDM O-rings
MediumWater , Water with anti-freeze
DN15
Leakage rate0%
Permissible operating pressure1599 kPa
Medium temperature41…194 ºF
