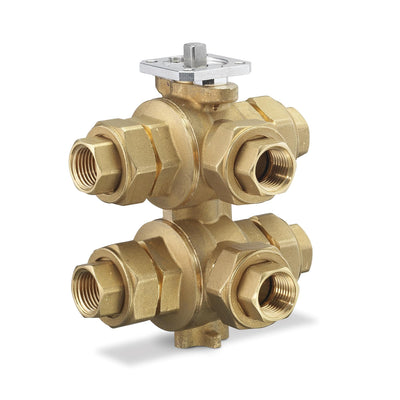

Siemens 599-10600-1.2-1.9 6W BALL VALVE 1/2", A=1.2CV, B=1.9CV, 58PSI CLOSE-OFF, FEMALE NPT

Product Description

Siemens - 599-10600-1.2-1.9 6W ball valve 1/2", A=1.2Cv, B=1.9Cv, 58psi close-off, female NPT

This 1/2-inch 599 Series 6-way ball valve is used to control hot and chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. Source A = 1.2 Cv and Source B = 1.9 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.
