manufacturer:
Siemens
mpn:
599-10602-1.9-4.7
Product Description

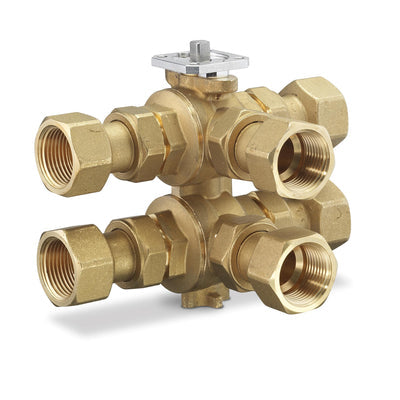

Siemens - 599-10602-1.9-4.7 6W ball valve 1", A=1.9Cv, B=4.7Cv, 58psi close-off, female NPT
This 1-inch 599 Series 6-way ball valve is used to control hot and chilled water and up to 50% Glycol solution in chilled/heated beams and other four pipe systems using a single valve and actuator. Source A = 1.9 Cv and Source B = 4.7 Cv, linear flow characteristic and chrome-plated brass ball and stainless steel stem and Cv washers. There is a handle for manual operation of the valve in the event of power failure.
Additional Information
Valve Size1 in
Source A, Cv1.9
Source B, Cv4.7
Valve Body StyleRotary-Ball
Port Configuration6-Way Changeover
End ConnectionNPT union, female
Connecting thread1 inch NPT
Material, valve bodyBrass
Trim MaterialChrome-plated Brass
Material, inside setBall: Chrome-plated brass , Ball Seals: PTFE , Stem: Stainless Steel , Stem Seals: EPDM O-rings
Flow CharacteristicLinear
MediumWater , Water with anti-freeze
DN25
Pressure Class232 psi (PN16)
Leakage rate0%
Medium temperature41…194 ºF
Close-off Pressure58 psi
Dimensions (W x H x D)7 x 5.75 x 4.5 in
