manufacturer:
Siemens
mpn:
B224UO-HA266.18K
Product Description

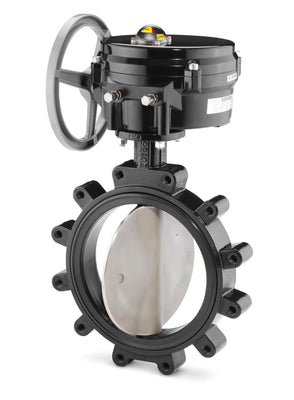

Siemens - B224UO-HA266.18K BFV 2W 24" 50PSI 120VAC MOD HTR NOHigh Temp Industrial Butterfly Valve Assembly, 2-way, 24-inch, 50 psi, 120 Vac, 0-10 Vdc, Heater, Normally Open
Additional Information
Valve Size24 in
Flow Coefficient, Cv11040
Valve TypeTwo-way
Valve Body StyleRotary-Butterfly
Port Configuration2-Way Normally open
End ConnectionLug
Material, valve bodyCast Iron
Trim MaterialStainless Steel
Butterfly DiscUnder Cut Disc
Butterfly HeaterYES
Butterfly Limit SwitchYES
Flow CharacteristicModified Equal-percentage
MediumWater , Water with anti-freeze
Max GPM42336 gpm
Pressure ClassANSI 125
High temperatureYES
Max. Inlet Pressure (absolute), Liquid250 psi
Max. Differential Pressure, Liquid29 psi
Medium temperature-20…250 ºF
Close-off Pressure50 psi
Valve Actuator TypeElectronic
Control Signal0...10 Vdc
Fail SafeNo
Supply Voltage120 VAC
Auxiliary switch2
Auxiliary SwitchYes
StandardNEMA 4
