manufacturer:
Siemens
mpn:
GCA121.3U
Product Description

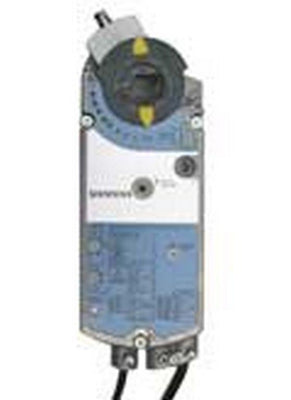

Siemens - GCA121.3U Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 160 lb-inOpenAir GCA Series Electric Damper Actuator, spring return, 160 lb /p
OpenAir GCA Series Electric Damper Actuator, spring return, 160 lb-in
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque160 lb-in
Positioning timeOpen:90 s, Close:15 s
Position feedbackNo
Power consumptionRunning: 7 VA / 5 W, Holding: 5 VA / 3 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage24 V
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)4.75 x 11.81 x 2.88 in
Material, housingNEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
