manufacturer:
Siemens
mpn:
GCA226.1U
Product Description

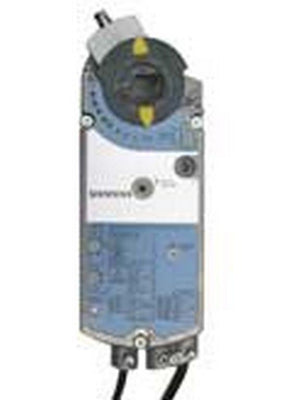

Siemens - GCA226.1U Damper Actuator | Spring Return | 120 VAC | On/Off | 160 lb-in | SWOpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 120 Vac, 2-position control, 90 sec run time, dual auxiliary switches
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque160 lb-in
Positioning timeOpen:90 s, Close:15 s
Position feedbackNo
Power consumptionRunning: 8 VA, Holding: 6 VA
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage120 VAC
Frequency50/60 Hz
Auxiliary switch2
Cable length3 ft
Dimensions (W x H x D)4.75 x 11.81 x 2.88 in
Material, housingNEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protectionIP54
