manufacturer:
Siemens
mpn:
GDE131.1U
Product Description

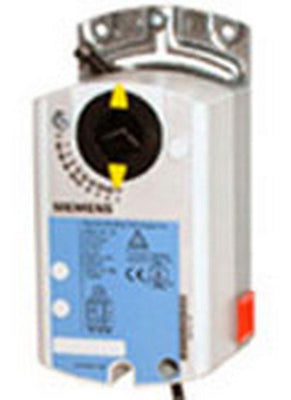

Siemens - GDE131.1U Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 44 lb-inOpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, floating control, 90 sec run time
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque44 lb-in
Positioning time50 Hz:108 s, 60 Hz:90 s
Position feedbackNo
Power consumption2.3 VA
Angular rotation90°
Operating voltage24 VAC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)2.75 x 5.44 x 2.38 in
Material, housingNEMA Type 2, IP54 according to EN 60 529
