manufacturer:
Siemens
mpn:
GDE141.1P
Product Description

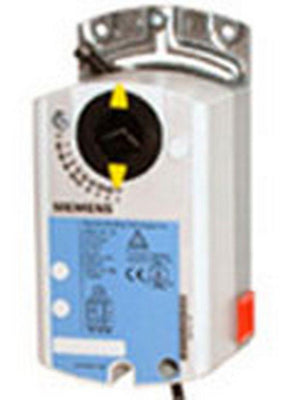

Siemens - GDE141.1P Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-inDamper Actuator 44 lb-in 2-position/floating control signal, non-spring return, plenum rated for low torque VAV applications and small dampers.
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque44 lb-in
Positioning time50 Hz:108 s, 60 Hz:90 s
Position feedbackNo
Power consumption2.0 VA, 1.0 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage19.2…28.8 V24 V#AC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)2.7 x 6.6 x 2.4 in
Material, housingNEMA 2, IP54 per EN60529, durable plastic
Degree of protectionIP54
