manufacturer:
Siemens
mpn:
GDE166.1P
Product Description

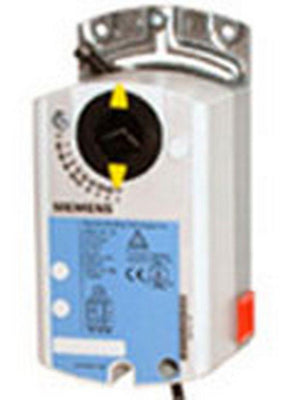

Siemens - GDE166.1P Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 44 lb-in | SWOpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, 0 to 10Vdc control, 90 sec run time, dual auxiliary switches, plenum rated
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque44 lb-in
Positioning time50 Hz:108 s, 60 Hz:90 s
Position feedbackYes
Power consumption3.3 VA
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage19.2…28.8 V24 V#AC/DC
Frequency50/60 Hz
Auxiliary switch2
Cable length3 ft
Dimensions (W x H x D)2.75 x 5.44 x 2.38 in
Material, housingNEMA Type 2, IP54 according to EN 60 529
Degree of protectionIP54
