manufacturer:
Siemens
mpn:
GEB131.1P
Product Description

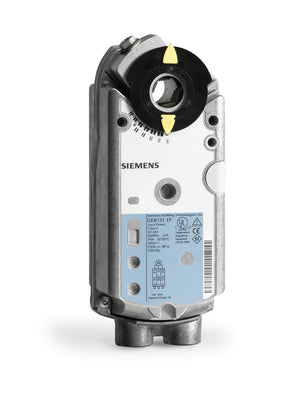

Siemens - GEB131.1P Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 132 lb-inOpenAir™ GEB Series Electric Damper Actuator, rotary, non-spring return, 132 lb-in (15 Nm), 24 Vac/dc, floating control, 125 sec run time, plenum rated
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque132 lb-in
Positioning time50 Hz:150 s, 60 Hz:125 s
Position feedbackNo
Power consumption3 VA / 3 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage24…28.8 V24 V#AC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)3.25 x 8.38 x 2.38 in
Material, housingNEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protectionIP68
