manufacturer:
Siemens
mpn:
GEB141.1U
Product Description

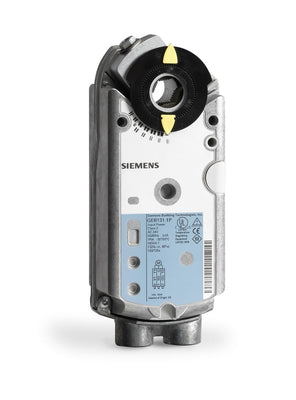

Siemens - GEB141.1U Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 132 lb-inDamper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC . For use on control dampers
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque132 lb-in
Positioning time50 Hz:150 s, 60 Hz:125 s
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage24 VAC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)Actuator: 3-1/4 W x 8-3/8 H x 2-3/8 D in. Shaft Diameter: 1/4 to 3/4 in. round, 1/4 to 1/2 in. square; Shaft Length Min: 3/4 in
