manufacturer:
Siemens
mpn:
GIB131.1P
Product Description

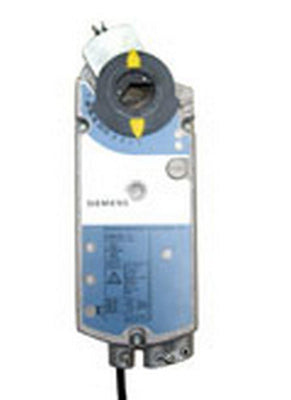

Siemens - GIB131.1P Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 310 lb-inOpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, floating control, 125 sec run time, plenum rated
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque310 lb-in
Spring return functionNon-spring return functionality
Positioning time50 Hz:150 s, 60 Hz:125 s
Position feedbackNo
Power consumption7 VA / 7 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage24 VAC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)3.94 x 11.81 x 2.69 in
Material, housingNEMA 1, die-cast aluminum alloy enclosure
Degree of protectionIP94
