manufacturer:
Siemens
mpn:
GIB163.1P
Product Description

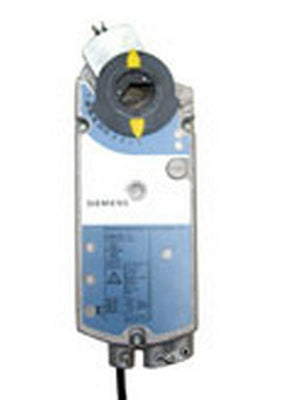

Siemens - GIB163.1P Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 310 lb-inOpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, adjustable span and offset, plenum rated
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque310 lb-in
Spring return functionNon-spring return functionality
Positioning time50 Hz:150 s, 60 Hz:125 s
Position feedbackYes
Power consumptionRunning: 8 VA / 8 W, Holding: 1.1 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage24 VAC/DC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)3.94 x 11.81 x 2.69 in
Material, housingNEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protectionIP87
