manufacturer:
Siemens
mpn:
GLB141.1Q
Product Description

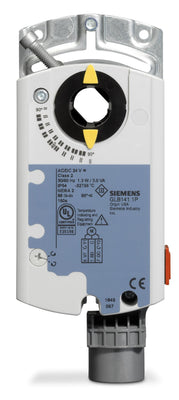

Siemens - GLB141.1Q Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 88 lb-inDamper Actuator 88 lb-in 2-position/floating control signal, non-spring return, plenum rated for use in constant or variable air volume installations for control of HVAC dampers.
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque88 lb-in
Positioning time50 Hz:150 s, 60 Hz:125 s
Position feedbackNo
Power consumption2.2 VA, 1.3 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage19.2…28.8 V24 V#AC
Frequency50/60 Hz
Cable length6 ft
Dimensions (W x H x D)2.7 x 6.6 x 2.4 in
Material, housingNEMA 2, IP54 per EN60529, durable plastic
Degree of protectionIP61
