manufacturer:
Siemens
mpn:
GMA131.1U
Product Description

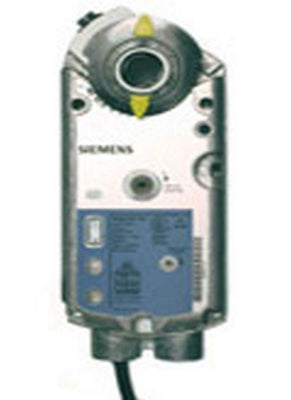

Siemens - GMA131.1U Damper Actuator | Spring Return | 24 VAC/DC | Floating | 62 lb-inOpenAir™ GMA Series Electric Damper Actuator, rotary, spring return, 62 lb-in (7 Nm), 24 Vac/dc, floating control, 90 sec run time
OpenAir GMA Series Electric Damper Actuator, spring return, 62 lb-in
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque62 lb-in
Positioning timeOpen:90 s, Close:15 s
Position feedbackNo
Power consumptionRunning: 5 VA / 3.5 W, Holding: 4 VA / 3 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage19.2…28.8 V24 V#AC/DC
Frequency50/60 Hz
Cable length3 ft
Dimensions (W x H x D)3.25 x 8.38 x 2.38 in
Material, housingNEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protectionIP54
