manufacturer:
Siemens
mpn:
GMA226.1U
Product Description

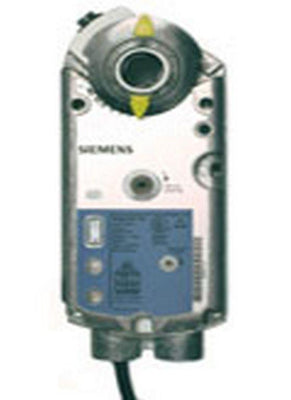

Siemens - GMA226.1U Damper Actuator | Spring Return | 120 VAC | On/Off | 62 lb-in | SWOpenAir™ GMA Series Electric Damper Actuator, rotary, spring return, 62 lb-in (7 Nm), 120 Vac, 2-position control, 90 sec run time, dual auxiliary switches
OpenAir GMA Series Electric Damper Actuator, spring return, 62 lb-in
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque62 lb-in
Positioning timeOpen:90 s, Close:15 s
Position feedbackNo
Power consumptionRunning and Holding: 7 VA / 5 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage120 VAC
Frequency50/60 Hz
Auxiliary switch2
Cable length3 ft
Dimensions (W x H x D)3.25 x 8.38 x 2.38 in
Material, housingNEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protectionIP54
