manufacturer:
Siemens
mpn:
GPC161.1P
Product Description

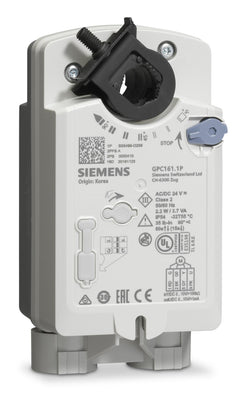

Siemens - GPC161.1P Damper Actuator | Spring Return | 24 VAC/DC | 0-10Vdc / 2-10Vdc | 35 lb-inDamper actuator spring return, 35 lb-in 0 (2) to 10Vdc modulating control. 24VAC/DC plenum rated. For use on economizer dampers and small control dampers
OpenAir GPC Series Electric Damper Actuator, spring return, 35 lb-in. For use on economizer dampers and small control dampers
Additional Information
Actuator TypeSpring return
Actuation StyleRotary
Control or Fire/Smoke TypeControl Damper
Plenum or Standard RatingPlenum
Torque35 lb-in
Fail SafeYes
Control Signal0...10Vdc / 2...10Vdc
Positioning timeRuntime for 90° 60 s
Position feedbackYes
Power consumptionRunning: 3.5 VA (2.1 W), Holding: 2.8 VA (1.7 W)
Ambient temperature, operation-25 to 130 °F, -32 to 55 °C
Angular rotation90°
Operating voltage24 VAC, 24 VDC
Supply Voltage24 VAC/DC
Frequency50/60 Hz
Auxiliary SwitchNo
Cable length3 ft
Dimensions (W x H x D)2.83 x 5.61 x 2.48 in
Material, housingNEMA 1, Plenum rated rugged plastic
