manufacturer:
Siemens
mpn:
GPC321.1U
Product Description

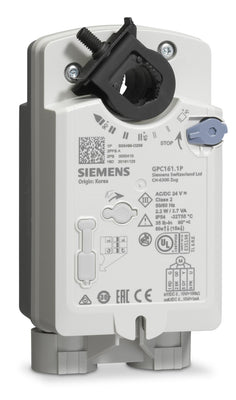

Siemens - GPC321.1U Damper Actuator | Spring Return | 120 to 230 VAC | On/Off | 35 lb-inDamper actuator spring return, 35 lb-in 2-position control. 120 to 230 VAC and plenum rated. For use on small control dampers
OpenAir GPC Series Electric Damper Actuator, spring return, 35 lb-in. For use on economizer dampers and small control dampers
Additional Information
Actuator TypeSpring return
Actuation StyleRotary
Control or Fire/Smoke TypeControl Damper
Plenum or Standard RatingStandard
Torque35 lb-in
Fail SafeYes
Control Signal2-position
Positioning timeRuntime for 90° 60 s
Position feedbackNo
Power consumptionRunning: 4.6 VA (2.4 W), Holding: 3.5 VA (1.7 W)
Ambient temperature, operation-25 to 130 °F, -32 to 55 °C
Angular rotation90°
Operating voltage120-230 VAC
Supply Voltage120 to 230 VAC
Frequency50/60 Hz
Auxiliary SwitchNo
Cable length3 ft
Dimensions (W x H x D)2.83 x 5.61 x 2.48 in
Material, housingNEMA 1, Plenum rated rugged plastic
