manufacturer:
Siemens
mpn:
GQD126.1P
Product Description

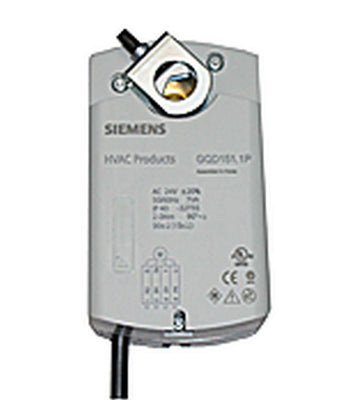

Siemens - GQD126.1P Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 20 lb-in | SWOpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, 2-position control, 30 sec run time, auxiliary switches, plenum rated
Additional Information
Control or Fire/Smoke TypeControl Damper
Torque20 lb-in
Positioning timeOpen:30 s, Close:15 s
Position feedbackNo
Power consumptionRunning: 6.5 VA /4.5W, Holding: 4 VA / 2.5 W
Ambient humidity, operation95 % r.h.
Angular rotation90°
Operating voltage24 VAC/DC
Frequency50/60 Hz
Auxiliary switch2
Cable length3 ft
Dimensions (W x H x D)2.72 x 5.5 x 2.47 in
Material, housingNEMA 1, plenum-rated rugged plastic, IP40
Degree of protectionIP40
