manufacturer:
Siemens
mpn:
GSD141.1P
Product Description

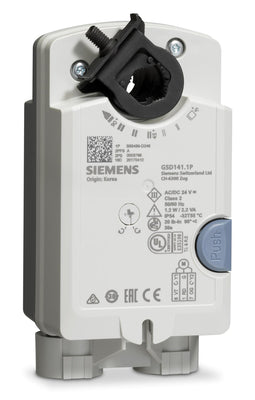

Siemens - GSD141.1P Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 20 lb-inDamper Actuator 20 lb-in 2-position/floating control, non-spring return, 24VAC/DC compatible and plenum rated. Used for low torque VAV applications and small dampers.
Additional Information
Actuator TypeNon-spring return
Actuation StyleRotary
Control or Fire/Smoke TypeControl Damper
Plenum or Standard RatingPlenum
Torque20 lb-in
Fail SafeNo
Control Signal2-position , Floating control
Positioning timeRuntime for 90° 30 s
Position feedbackNo
Power consumptionRunning: 2.2 VA (1.2 W), Holding: 1.0 VA (0.5 W)
Ambient temperature, operation-25 to 130 °F, -32 to 55 °C
Operating voltage24 VAC, 24 VDC
Supply Voltage24 VAC/DC
Frequency50/60 Hz
Auxiliary SwitchNo
Cable length3 ft
Dimensions (W x H x D)2.83 x 5.86 x 2.45 in
Material, housingIP54 enclosure, Plenum rated rugged plastic
