manufacturer:
Siemens
mpn:
M2FP03GX
Product Description

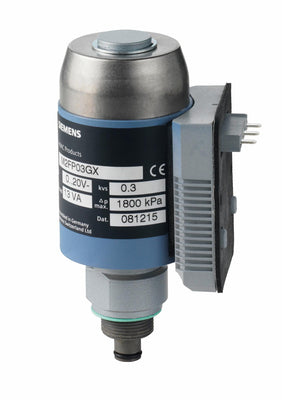

Siemens - M2FP03GX Refrigerator Pilot ValveThis Staefa Magnetic M2FP.. Is a Refrigerator Pilot Valve.
Additional Information
Ambient temperature, operation-40…50 °C
Degree of protectionIP54
kvs0.3 m³/h
Leakage rate0.25 % of kvs
Material, inside setCrNi steel
Material, valve bodySteel
Medium temperature-40…100 °C; -40…212 ºF
Mounting positionAny
Nominal pressurePN 32
Operating voltage24 VAC
Permissible operating pressure3200 kPa
Positioning signalDC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time1 s
Power consumption13 VA
Spring return functionClosed
Valve characteristicLinear
Δpmax1800 kPa
Stroke resolution ΔH/H1001:200
Material, valve bodySteel
Dimensions (W x H x D)4.41 x 5.87 x 2.66 in
