manufacturer:
Siemens
mpn:
M3FB25LX/A
Product Description

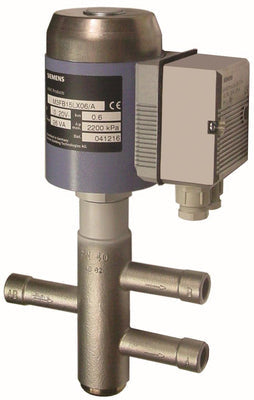

Siemens - M3FB25LX/A 0 to 10V, 1"Valve, Hot Gas Bypass, 9.3 Cv, 460 PSI
This M3FB Magnetic Valve is used for refrigeration applications. This 0 to 10V diverting valve is suitable for hot gas bypass and heat-recovery applications. This 1" valve has a 9.3 Cv, a maximum operating pressure of 460 psi and must be applied to closed loop applications.
Additional Information
Power consumption40 VA
Stroke resolution ΔH/H1001:200
Material, valve bodySteel
Ambient temperature, operation-40…50 °C
Degree of protectionIP54
Leakage rate0.05 % of kvs
Material, inside setCrNi steel/brass
Material, valve bodySteel
Medium temperature-40…120 °C; -40…248 ºF
Mounting positionAny
Nominal pressurePN 32
Operating voltage24 VAC
Permissible operating pressure4300 kPa
Positioning signalDC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time1 s
Spring return functionAB- A closed
Valve characteristicLinear
Δpmax1200 kPa
Dimensions (W x H x D)7.87 x 14.02 x 3.94 in
kvs8 m³/h
DN25
