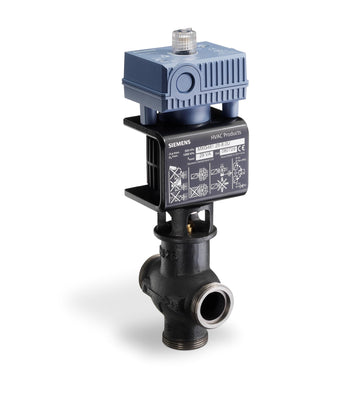

Siemens MXF461.65-50U MAGNETIC 2-1/2"VALVE MIXING, 58.2 CV, 0 TO 10V CONTROL, W/O BLANKING FLANGE

Product Description

Siemens - MXF461.65-50U Magnetic 2-1/2"Valve mixing, 58.2 Cv, 0 to 10V control, w/o blanking flange

This MX Flanged Valve with Electronics Module is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 2-1/2" valve can be configured for straight-through or mixing applications and has a 58.2 Cv and 43 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback.
