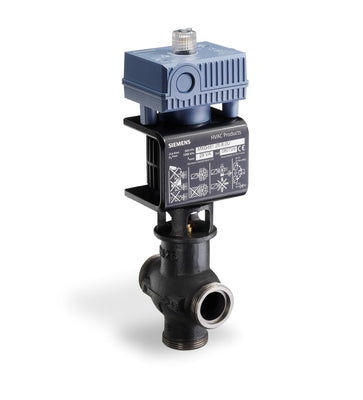

Siemens MXG461.15-1.5U MAGNETIC, 1/2" VALVE, 2-WAY OR FLOATING 1.8 CV, 0-10V CONTROL, W/ NPT UNIONS

Product Description

Siemens - MXG461.15-1.5U Magnetic, 1/2" Valve, 2-way or floating 1.8 Cv, 0-10V control, w/ NPT unions

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. The valve can be configured for straight-through or 3-Way applications and has 1/2" line size, 1.8 Cv and 72 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.
