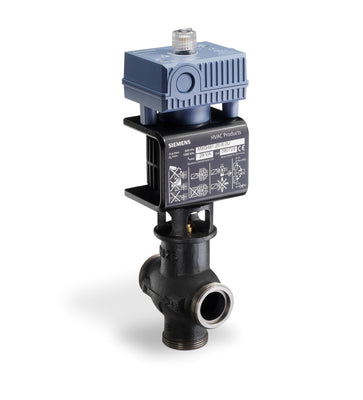

Siemens MXG461.32-12U MAGNETIC 1-1/4" VALVE, 2-WAY OR MIXING, 14 CV, 0 TO 10V CONTROL, W/ NPT UNIONS

Product Description

Siemens - MXG461.32-12U Magnetic 1-1/4" Valve, 2-way or mixing, 14 Cv, 0 to 10V control, w/ NPT unions

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 1-1/4" valve can be configured for straight-through or mixing applications and has a 14.0 Cv and 43 psi close-off. It has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.
