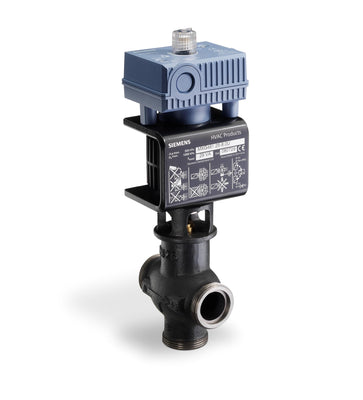

Siemens MXG461.40-20U MAGNETIC VALVE, 1-1/2", 2-WAY OR FLOATING, 23.4 CV, 0-10V CONTROL, NPT UNIONS

Product Description

Siemens - MXG461.40-20U Magnetic Valve, 1-1/2", 2-way or floating, 23.4 Cv, 0-10V control, NPT unions

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 1-1/2" valve can be configured for straight-through or floating applications and has a 23.4 Cv and 43 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and cUL listed.
